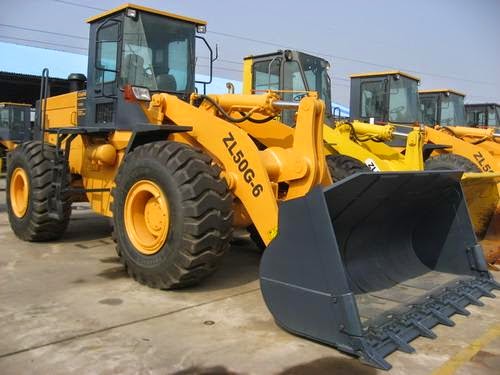

4 forward & 3 reverse power shift transmission
KD switch operate easily and efficiently
Load-sensed full hydraulic steering system dual-pump confluent flow working hydraulic& steering system
Combined seal cylinder obtains high seal performance and more reliability
Overall Dimension | ||||||||||||
1 | Length (with bucket on ground) | 8215(mm) | ||||||||||
| 2 | Width (to outside of wheels) | 2800(mm) | ||||||||||
3 | Bucket width | 2946(mm) | ||||||||||
4 | Height (To the top of the cab) | 3450(mm) | ||||||||||
5 | Wheel base | 3350(mm) | ||||||||||
6 | Tread | 2200(mm) | ||||||||||
| 7 | Min. ground clearance | 450(mm) | ||||||||||
Main Technical Specification | ||||||||||||
1 | Rated load | 5000(Kg) | ||||||||||
2 | Operating weight | 16300KG | ||||||||||
| 3 | Rated bucket capacity | 3.0(m3) | ||||||||||
4 | Max. Breakout force | 160kN | ||||||||||
5 | Max. Traction | 150kN | ||||||||||
6 | Max. Gradient ability | 300 | ||||||||||
7 | Max. dump clearance | 3050(mm) | ||||||||||
8 | Dump reach | 1107(mm) | ||||||||||
9 | Dump angle at any position | >450 | ||||||||||
10 | Digging depth(with bucket bottom horizontal) | 165(mm) | ||||||||||
| 11 | Min. turning radius | |||||||||||
(1) Outside of bucket | 6675(mm) | |||||||||||
(2) Outside of rear wheel | 5879(mm) | |||||||||||
| 12 | Pivot angle frame | 400 | ||||||||||
13 | Oscillating angle of rear axle | +13o | ||||||||||
14 | Lifting time of bucket | <5.8(sec.) | ||||||||||
15 | Lowering time of bucket | <3.8(sec.) | ||||||||||
16 | Dumping time | <1.2(sec.) | ||||||||||
17 | Traveling speed(Km/h),4 forward and 3 reverse | |||||||||||
6.7/6.7 | ||||||||||||
(2) 2nd gear (F/R) | 12.2/12.2 | |||||||||||
(3) 3rd gear (F/R) | 25.6/25.6 | |||||||||||
(4) 4rd gear(F) | 35 | |||||||||||
| Diesel engine | ||||||||||||
1 | Model | ShangChai C6121 engine | ||||||||||
2 | Type | Direct injection. Turbocharge. Water cooling | ||||||||||
| 3 | Rated output | 158 (kW) | ||||||||||
4 | Inter-bore of cylinder/stroke | 121/152(mm) | ||||||||||
5 | Total exhaust of cylinder | 9.7260(L) | ||||||||||
6 | Model of starting motor | KB-24V | ||||||||||
7 | Power of start motor | 7.5(KW) | ||||||||||
8 | Voltage of starting motor | 24(V) | ||||||||||
9 | Rated speed | 2200(r/min.) | ||||||||||
10 | Max. Torque | >843(N.m) | ||||||||||
11 | Starting type | Electric | ||||||||||
| 12 | Min. specific fuel consumption | <235(g/Kw.h) | ||||||||||
13 | Engine specific oil consumption | 0.95-1.77(g/Kw.h) | ||||||||||
14 | Net weight | 960(Kg) | ||||||||||
Transmission System | ||||||||||||
| Torque Converter | ||||||||||||
1 | Model | ZF technology WG200 | ||||||||||
2 | Type | 3-elements.single stage | ||||||||||
3 | Torque ratio | 2.55 | ||||||||||
4 | Cooling type | Pressure oil circulating | ||||||||||
| Transmission case | ||||||||||||
1 | Model | ZF technology WG200 | ||||||||||
2 | Type | power shift, spur gear constant-mesh | ||||||||||
3 | Gear shift position | 4 Forward and 3 reverse gears | ||||||||||
Axle and Tire | ||||||||||||
1 | Type of main reducer | spiral bevel gear, single stage | ||||||||||
| 2 | Gear ratio of main reducer | 4.625 | ||||||||||
3 | Type of final reducer | Single stage planetary | ||||||||||
4 | Gear of ratio of final reducer | 4.9286 | ||||||||||
5 | Total ratios | 22.795 | ||||||||||
6 | Size of tire | 23.5-25-16PR | ||||||||||
| Working Device Hydraulic System | ||||||||||||
1 | Model of oil pump | CBGj 3100-S | ||||||||||
2 | System pressure | 200(kgf/cm2) | ||||||||||
3 | Model of Muti-way directional valve | 7130-B97(HUSCO) | ||||||||||
4 | Pilot valve | 406-1044-1145(HUSCO) | ||||||||||
5 | (D*L)Dimension of lifting cylinder | Ф160*90*715(mm) | ||||||||||
6 | (D*L)Dimension of tilting cylinder | Ф180*90*530(mm) | ||||||||||
Steering System | ||||||||||||
1 | Type | Middle articulated frame. Co-axis flow amp. Steering | ||||||||||
2 | Model of steering pump | CBGj2063/1016-XFS | ||||||||||
3 | Model of redirector | TLF1-E1000B+FKB6020 | ||||||||||
| 4 | Model of priority valve | YXL-F160L-N7-H | ||||||||||
4 | System pressure | 16MPa | ||||||||||
5 | Dimension of steering cylinder | Ф90*45*400(mm) | ||||||||||
Brake System | ||||||||||||
| 1 | Type of traveling brake | Caplier disc brake Air over oil activate 4 wheel brake | ||||||||||
2 | Air pressure | 7-8(kgf/cm2) | ||||||||||
3 | Type of emergency brake | Manual control cutting-off air brake | ||||||||||
| 4 | Type of parking brake | Drum brake Manual control cutting-off air brake | ||||||||||
Oil Capacity | ||||||||||||
1 | Fuel(diesel) | 250(L) | ||||||||||
| 2 | Engine lubricating oil | 42(L) | ||||||||||
3 | Oil for converter and gear box | 42(L) | ||||||||||
4 | Oil for hydraulic system | 180(L) | ||||||||||
5 | Oil for driving axles(F/R) | 20/20(L) | ||||||||||
